Description

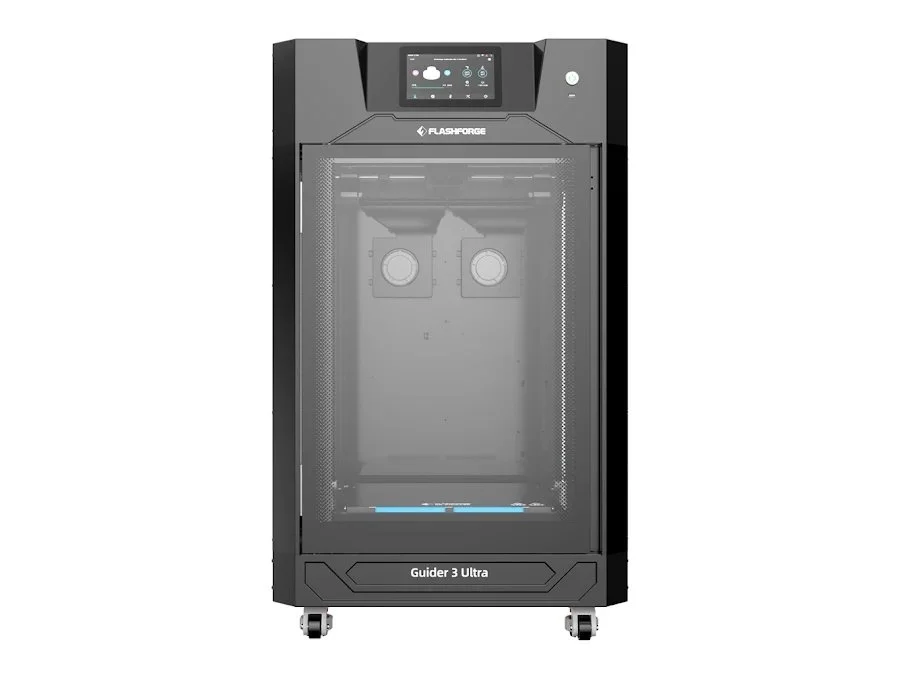

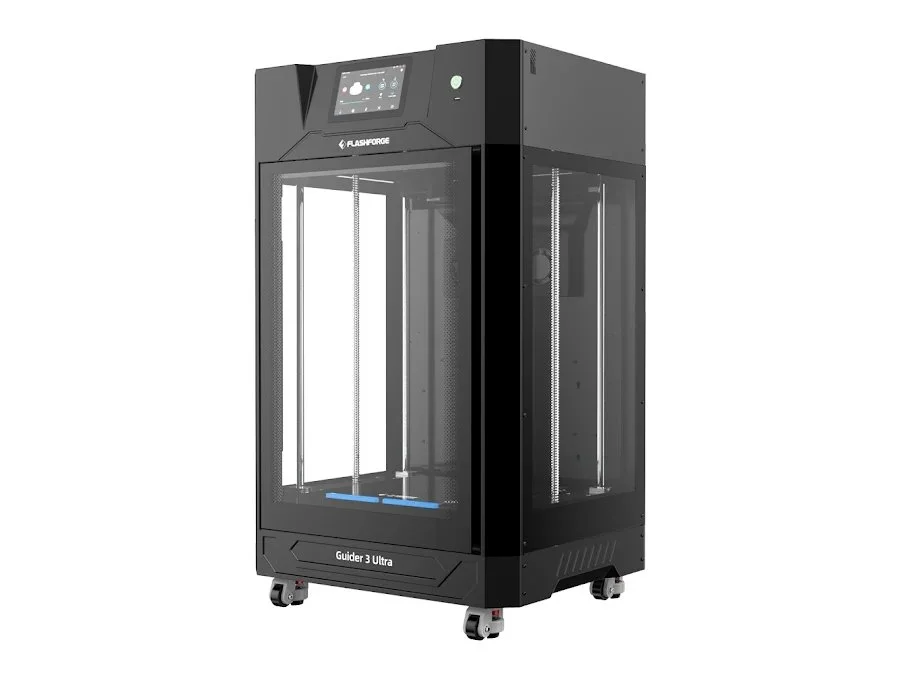

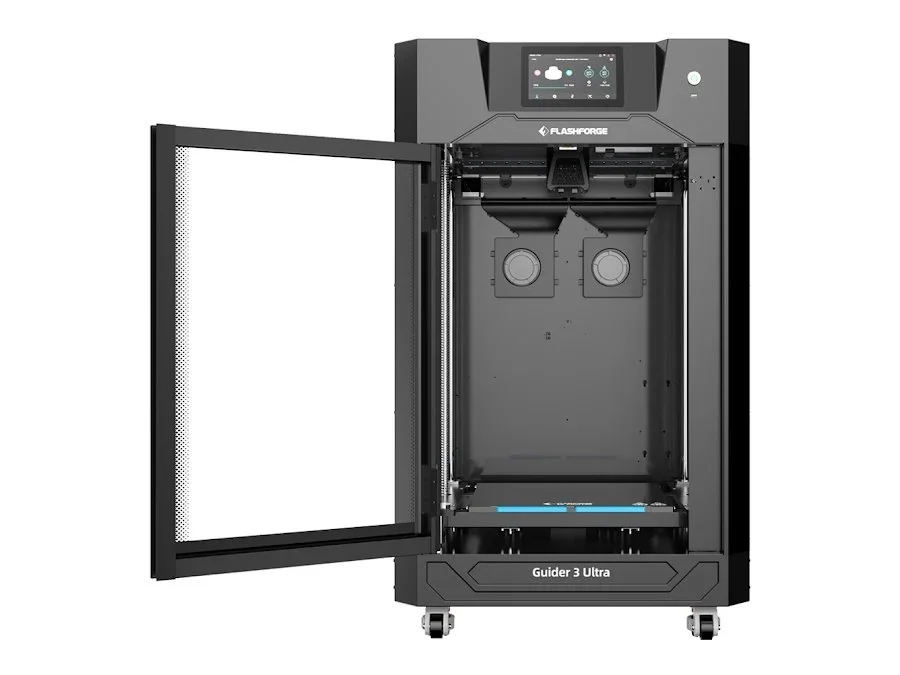

The FlashForge Guider 3 Ultra is an ideal choice for commercial-grade additive manufacturing, offering reliable and efficient performance. Thanks to its CoreXY design, this 3D printer combines FlashForge’s renowned technology with high speed printing, high fidelity, and quiet operation in one convenient package. Whether you need high-precision prints or silent printing, the FlashForge Guider 3 Ultra is the perfect all-in-one solution. Dual Extrusion High speed & quiet printing Built-in filament drying chamber & Hepa 13 air filtration Flexible and removable steel plate Features The FlashForge Guider 3 Ultra offers unparalleled speed and efficiency for your business needs with its CoreXY design, combining the best of FlashForge‘s renowned technology. High speed – 500mm/s print speed. Extremely sturdy z-axis guides and ball screws for the stability of large models and long print jobs Built-in filament drying chamber & Hepa 13 air filtration system High-temperature extruder 320C Quick release nozzle Passive filament storage chambers Specifications Printing Printing Precision: ±0.15mm or 0.002mm/mm Position Precision: X/Y axis: 0.011 mm; Z axis; 0.0025 mm Layer Thickness: 0.05-0.4mm Build Volume: 330(L) x 330(W) x 600(H) mm Nozzle Diameter: 0.4 mm Standard (Optional 0.6 mm/0.8 mm) Maximum Extruder Temperature: 350°C (608°F) Adjustable Heated Build Plate Temperature: Up to 110°C (230°F) Filament Diameter: 1.75 mm Filament Compatibility: PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA Print Speed: 10-500 mm/s Mechanical & Dimensions Number of Extruders: One Printer Dimensions: 496 (L) x 436 (W) x 696 (H) mm (19.5 x 17 x 27 in) Packaging Dimensions: 585 (L) x 530 W) x 760 (H) mm (23 x 21 x 30 in) Net Weight: 60 LBS (27 KG) Electrical Power Supply: AC100-240V / DC24V / 20.8A, 650W HD Touch Screen: 4.3 inch Connectivity: USB Cable, USB Stick, Wi-Fi, Ethernet Certification: CE / FCC / RoHS Software Software: FlashPrint Compatible Slicing Software: Slic3r, Skeinforge, Cura (Require to set up), Simplify3D (Coming Soon) File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG File Output Format: GX / G / gcode
