Description

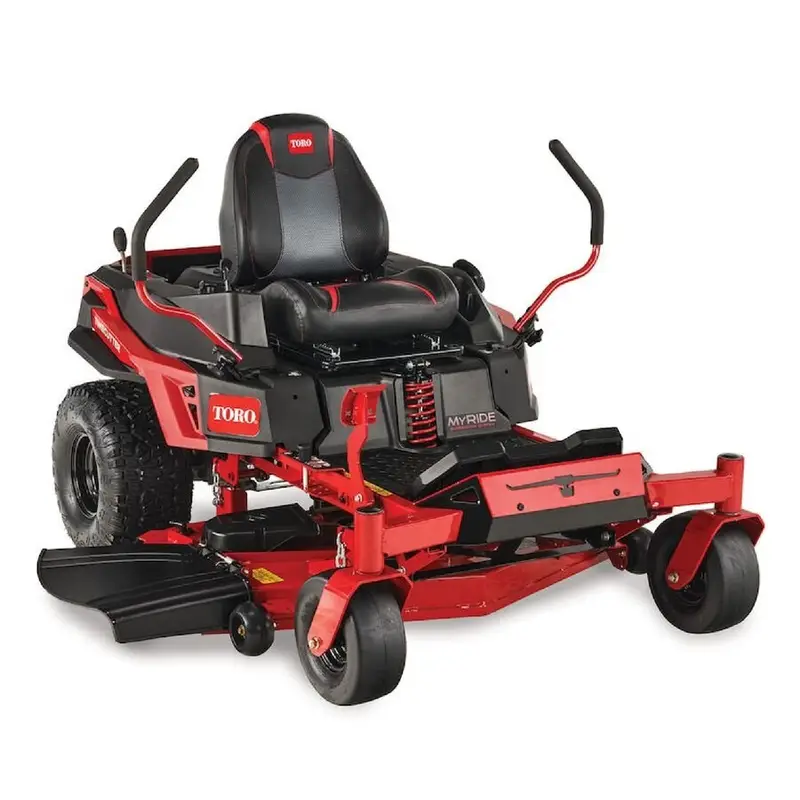

When it comes to your yard, second best just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting. Specifications Air Filter Standard Kawasaki Air Cleaner Anti Scalp Wheels 3 Standard Armrests Optional Bagger Capacity 4.9 bushels Blade Tip Speed 17,600 ft/min / 5,364 m/min Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm CARB Compliant Not CARB Compliant Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel Caster Tires 12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic Clutch Electromagnetic Comfort Platform MyRIDE® Suspension System Cooling System Air Cooled Crankshaft 1″ (25 mm) w/Steel Protector Cup Holder Standard Cutter System Steel Cutting Blade Deck Design 10-Gauge steel IrongForged® Deck Material 10 Gauge Steel Deck Size 50 in / 127 cm Discharge Chute Side Drive System HYDRO Drive Tires 20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm) Drive Type Rear-Wheel Drive Engine 23 hp Kawasaki FR691V 726cc Engine Brand Kawasaki Engine Displacement (cc) 726 cc Engine Horsepower 23.0 hp Engine Power (kW) 17.2 kW Foot Operated Height of Cut Standard Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph Forward Mowing Speed Up to 7.0 mph / 11.2 kph Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing Fuel Capacity 5 gal. / 18.9 L / 20 Qt. Fuel Type Gasoline Greasable Bearings Yes Height of Cut 1.5 – 5.0 in. / 3.8 – 12.7 cm Hitch Bracket Standard Hour Meter Optional Hydraulic Drive Standard Lighting Optional Number of Blades 3 Product Type TimeCutter Max MyRide Product Use Residential Recommended Oil Type 10W-30 Roll-Over Protection System (ROPS) Optional Seat 19″ Gaming Style Spindle Bearings Maintenance-free Spindle Housing Cast-Aluminum Start Type Electric Steering Controls Twin Lever Steering Dampeners Standard Dampers Terrain Type Flat with Obstacles Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (55.8 cm x 27.9 cm) Rear Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs. Transmission Dual Hydrostatic HG-EZT2200 Washout Port Standard Weight 684 lbs / 310.3 kg
